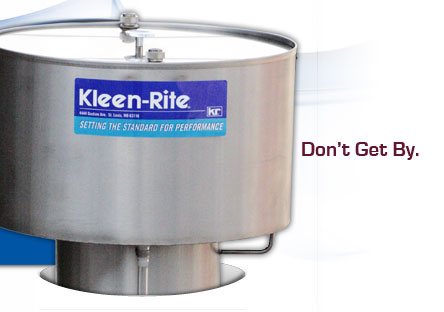

The Hydro-Mist eliminates perc-contaminated wastewater produced by distillation, water separators, vacuum units and cartridge dryers. A set of primary and secondary carbon cartridges purify contaminated water, which is siphoned through an air pressure system producing a fine "Cool" mist.

Features include:

  • Rugged Stainless Steel
  • Corrosion Free
  • Gravity flow and self feeding
  • No steam
  • No Heat
  • No electricity
  • No Pumps
  • No Solenoids

hydro-mist

Environmental Impact

Air Impact:
No contaminated air is produced from this equipment.

Water Impact:
Water is evaporated off to the atmosphere at less than 0.1 ppm of perc.

Solid Waste Impact:
Dispose of two carbon cartridges every 3 months.

Energy Impact:
The Hydro-Mist operates on 30 p.s.i.g. air pressure at 1/3 horsepower.

Hydro Mist Chart

Model M1

Height 25-1/2"
Diameter 14-1/4"
Net Weight 26 Pounds
Water Tank Capacity 5 Gallons
Rate Water Purified 3/4 Gallons Per Hour
Air Pressure 30 PSI
Compressor Air Usage 1/3 Horsepower
Number of Cartridges One Set



Hydro-Mist Setting the Standard for Performance

Cabinetry:
Constructed of stainless steel.

Contaminated Water Tank
Holds up to five gallons of perc contaminated water.

Lid:
Prevents debris from falling into Water Tank.

Clean-Out Port:
Allows easy cleaning of Contaminated Water Tank.

Evaporator Nozzle:
Atomizes water into tiny droplets that evaporate almost instantly.

Air Pressure System:
Creates air velocity that pulls water through cartridges into the evaporator nozzles.

Plunger Cleaning Button:
Dirty Nozzles are easily cleaned by pushing the Plunger Cleaning Button located on the underside of the nozzle. A cleaning needle will rise up through the orifice and dislodge the foreign body.

Sight Tube:
Views perc contaminate water level in Cartridge Cavity.

Built-in Separator:
Allows free perc to separate before the contaminated water enters the cartridges.

Perc Float:
Visual indication of free perc.

Perc Drain Valve:
Location on bottom of unit allows draining of free excess perc.
